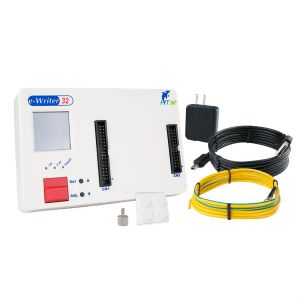

The ESKT328SOP_68XV02X is used to program the Holtek 8-bit MCU, HT68FV022 and HT68RV024 with package type 8-pin SOP. It must be used together with the Holtek e-Writer32 V1.1 programmer. You can identify the e-Writer32 V1.1 and e-Writer32 based on the label on the back of the product.
Insert the adaptor into the slot on e-Writer32 V1.1.
Place IC:
- Align the IC pin1 with pin1 of this adaptor. (marked on the PCB)
- Please note the IC placing position. (marked on the PCB)
The adapter can only program a IC each time.
The ICP pins (e-CON12A) of the adaptor are not used. The e-Writer32 V1.1 is capable of performing ICP individually. Please refer to Holtek e-Writer32 Series Writer User's Guide for more details.
