The ESK-45F0062-D00 is an RGB LED lighting pattern development board, which has a built-in Holtek multi-channel RGB LED flash MCU HT45F0062. It can be used independently or connected with multiple ESK-45F0062-D00 in series via ESK-66F2390-M00.
The development board includes 8 RGB LEDs. With the Holtek RGB LED Lighting Pattern Workshop, users do not need to write codes. The brightness and colors of LEDs are adjustable. There are five lighting effect modes : Always-on, Blinking, Breathing, Flowing and Colorful streamer modes. The Workshop has a built-in color palette, up to seven colors can be set. It can be used after programing with e-Link.

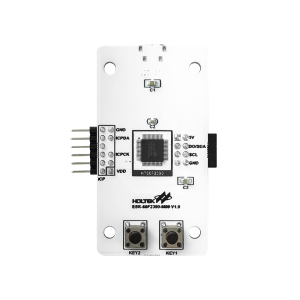

The ESK-45F0062-D00 provides three modes : Stand-alone mode, Cascade mode, I2C mode. In stand-alone mode, it can be operated independently. In cascade and I2C modes, multiple ESK-45F0062-D00 can be connected in series, and users can use ESK-66F2390-M00 as the master controller to switch the lighting effects.
The HT45F0062 has a built-in 8MHz oscillator HIRC, a 4-level LED constant current source. The number of LEDs can be extended by configuring a parallel combination of RGB LEDs. The device also includes 12 sets of 8-bit PWM generators each of which can have 256 different programmable illumination levels.
