16W Water Atomization Module (BMCOM) BMN31K522

US$10.90
In stock
Quantity
221 pieces
Product ID
BMN31K522

The BMN31K522 is a 16W water atomization module that is composed of a control board and integrated atomizer module BM52O5221-1. The BM52O5221-1 integrates a piezoelectric transducer, control circuit board, and structural components.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$10.90
10+ 5% US$10.36
For more quantity discounts please contact us
Follow Us for More Updates!
DESCRIPTION

Adjustable atomizing levels and other features

The control board is designed by using the Holtek 8-bit MCU HT66F2030. There is an on-board button to change the atomizing levels (1~3 levels). The product provides the water-shortage detection function to prevent the transducer from being damaged when working in the absence of water.

When there's enough water, the on-board LED stays on. However, when a water shortage is detected (water level drops below 30mm), the LED starts blinking, and the BM52O5221-1 stops working automatically.

To use with a development board

There is the BMCOM on the control board. With the BMCOM, you can directly connect the product to BMduino development boards, such as BM53A367A directly. You can use it with other development boards, such as Arduino UNO, as well. directly.

Two operation modes

The product provides two operation modes, stand-alone mode and networking mode.

  1. Stand-alone mode: just connect a fan to the control board and supply power (24V) to start using it.
    When a water shortage is detected, the BM52O5221-1 stops working automatically. It re-atomizes once the enough water is detected.
  2. Networking mode: in this mode, the development board sends commands to control the BMN31K522. You need to connect a fan to the control board and supply power to both the control board (24V) and the development board to start using it.
    When a water shortage is detected, the BM52O5221-1 stops working automatically. It re-atomizes once enough water is detected. The development board does not need to send a command.
Please be informed that it is necessary to add water before powering up the product.
PRODUCT FEATURES
  1. Input voltage: 24V
  2. Operating current: 0.75A @24V (Max.)
  3. Atomization frequency: 1.7MHz
  4. Atomization rate: >220ml/h (for reference, affected by mechanism)
  5. Atomization efficiency: >13.5ml/(w·h)
  6. Operation mode: stand-alone and networking
  7. Adjustable atomizing level: 3 levels; 0 level: stop atomizing
  8. Water-shortage detection function (capacitive)
  9. Interface: UART (baud rate: 9600bps)
  10. Recommended water level: 30~50mm
  11. BM52O5221-1 passed the EN 55014 EMC test
  12. Dimension:
    - Control board: 40.91 x 36.25 x 13.1 mm
    - BM52O5221-1: 55 x 55 x 36.8 mm
  13. Net weight: 71g

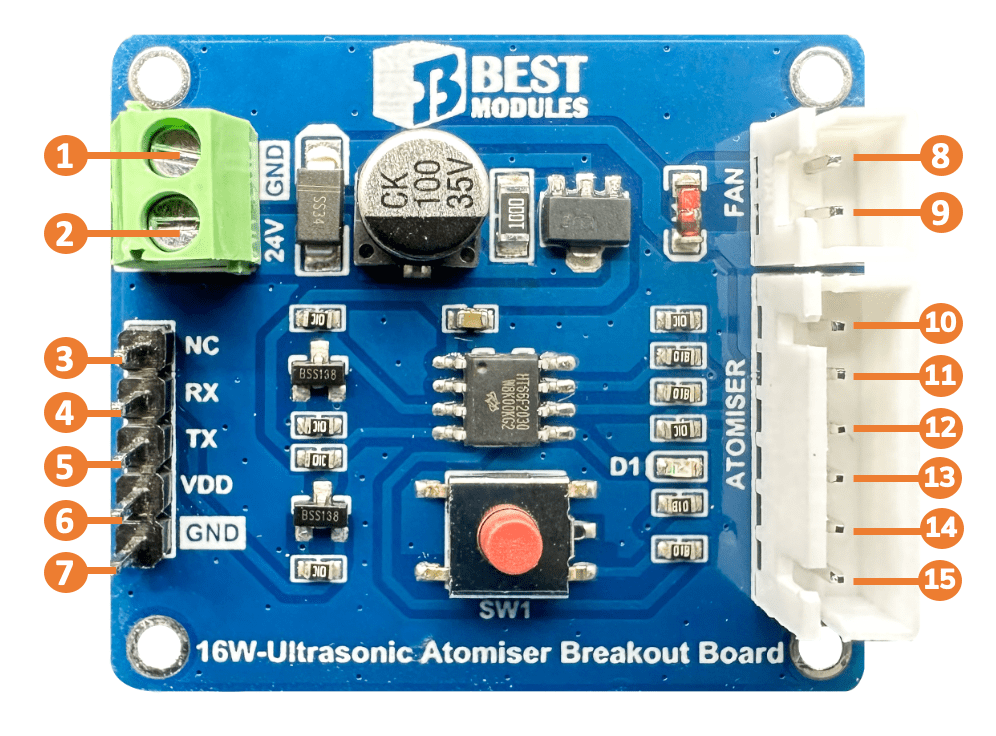

HARDWARE OVERVIEW
PIN DESCRIPTION
Pin Pin name Function
1 GND Ground
2 VDD Power supply: 24V
3 NC -
4 RX UART: RX
5 TX UART: TX
6 VDD Positive power
(for UART communication)
7 GND Ground
(for UART communication)
8 FAN- FAN negative
9 FAN- FAN positive
10 GND Ground (BM52O5221-1)
11 24V Positive power (BM52O5221-1)
12 PWM PWM control pin
(control atomizing levels)
13 WATER Water level detection pin
14 FAN Fan driver pin
15 VR -
PRODUCT SERIES COMPARING
Function BMN31K522 BMN31K512 BMN31K502
Operating voltage 24V 18V~26.5V 5V
Operating current 0.75A @24V 0.42A @24V 400mA @5V
Atomization power (Max.) 16W 10W 2W
Atomization frequency 1.7MHz 1.7MHz / 2.4MHz 108kHz
Adjustable atomizing level O
(3 levels)
O
Networking mode: 32 levels
Stand-alone mode: 5W~10W
O
Networking mode: 3 levels
Water shortage detection O O X
Piezoelectric transducer
installation
Under water Under water Above water
Interface UART (9600bps) UART (9600bps) UART (9600bps)
RESOURCES
  1. MCU : Holtek HT66F2030, Small Package A/D Flash MCU with EEPROM, including datasheet, package information, etc.
