Home BH67F2762 Infrared Thermometer Development Board (with sensor) BMHB6004-plus
  • Home
  • BH67F2762 Infrared Thermometer Development Board (with sensor) BMHB6004-plus
main product photo

BH67F2762 Infrared Thermometer Development Board (with sensor) BMHB6004-plus

US$34.00
In stock
Quantity
4 pieces
Product ID
BMHB6004-plus
DESCRIPTION

The BMHB6004-plus is a development board for Holtek infrared thermometer Flash MCU BH67F2762. It is designed and produced by Best Health Electronics Inc.

The BH67F2762 includes an integrated Infrared thermometer circuit (an OPA, LDO, PGA, and a 24-bit Delta-Sigma A/D Converter included). The EEPROM memory can be automatically calibrated during production by software and the UART / SPI interfaces can be used for connecting to peripheral devices such as Bluetooth etc.

Product information

Dimension: 119 x 78 x 11 mm
Net weight: 44.5g
Product includes:
1. BH67F2752 Development Board BMHB6004-plus x 1
2. Thermopile sensor x 1

NOTE
  1. For product details and technical support, please contact Best Health, email : service@e-besthealth.com

Add to Wish List
Email
Follow Us for More Updates!
HARDWARE OVERVIEW
PROGRAMMING WIRING
PRODUCT FAQs

Question 1
How many temperature types can BMHB6003-plus measure and display?

Answer
It can measure and display three types of temperatures: ambient temperature, object temperature, body temperature.

Question 2
What is the default temperature type?

Answer
The default is object temperature.

Question 3
How to modify the temperature type?

Answer
Open the fun_get_UTP subroutine in the work.c file, modifying the parameter in LCD_DISPLAY().

To measure and display body temperature

To measure and display ambient temperature

To measure and display object temperature

GETTING STARTED

Our practical operation steps for measurement and calibration are as below:

 Measurement mode

  1. Connect to 3.3V or 5V power supply and then press KEY2 to measure temperature.
  2. The LCD displays the temperature value.

 Calibration mode

  The product calibrates degree according to 25°C and 37°C. Please refer to the calibration process:

  1. Connect to 3.3V or 5V power supply.
  2. Press KEY1 to enter the calibration mode and the LCD displays the ambient temperature.
  3. Press KEY3 and the LCD displays C1. Align the infrared thermometer sensor with the 25°C black body.
  4. Press KEY3 to calibrate. If the calibration is successful, the LCD displays C2. And then align the infrared thermometer sensor with the 37°C black body.
  5. Press KEY3 to calibrate. If the calibration is successful, the LCD displays PAS. Otherwise, it displays FAL.
  6. Press KEY2 to turn back to the measurement mode.
RESOURCES
  1. MCU : Holtek BH67F2762, 24-bit Delta Sigma A/D Flash MCU with LCD and OPA, including datasheet, package information, tool information, etc.
More Information
HS Code (reference) 8473.50.00.00-1
Schematics (2.15 MB)
User Guide (Traditional Chinese version) (156.46 kB)
Demo code (173.54 kB)
Related Products

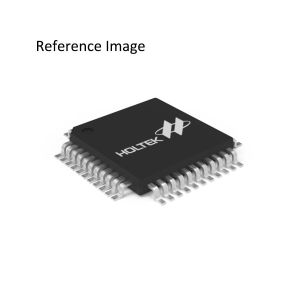

BH67F2762 64LQFP
