DALI-2 DT6 LED Driver Control Module BM82D8011-1

US$2.45
In stock
Quantity
97 pieces
Product ID
BM82D8011-1

The product is specifically designed for DALI-2 LED DT6 drivers and complies with the DALI-2 standard. It can be used to control the brightness (Device Type 6, DT6) of LEDs.
It is suitable for DALI-2 LED constant voltage/current drivers.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$2.45
10+ 5% US$2.33
For more quantity discounts please contact us
Follow Us for More Updates!
PRODUCT FEATURES
  1. Supported device type: DT6
  2. Operating voltage: 7V~30V
  3. DALI interface operating voltage: 9.5V~22.5V
  4. DALI interface withstand voltage: 260V AC
  5. Operating current: < 10mA
  6. DALI interface current consumption: < 2mA
  7. Compliance with IEC 62386 101/102/207 Standards
  8. Brightness range (PWM output percentage): 0%~100%
    - Minimum brightness: 1% (default)
    - Resolution: 0.1%
  9. Storage temperature: -40℃~125℃
  10. Ambient temperature: -25℃~85℃
  11. Includes LED fault detection function
  12. Supports secondary development
  13. Dimension: 40 x 17 x 6.5 mm
  14. Net weight: 2.3g
DESCRIPTION

DALI (Digital Addressable Lighting Interface) is a digital addressing lighting communication protocol that assists in fulfilling various lighting control requirements. It can integrate lighting devices from different manufacturers, allowing you to assign a specific address to each device and organize them into different groups for convenient adjustment of lighting according to different applications.
Furthermore, users don’t need to rewire the devices when they require changing lighting schemes or rearranging groups. It is highly convenient! We provide the development platform, DALI Workshop, to help users easily design products that comply with the DALI protocol.

DALI Workshop

In the DALI Workshop, users can assign addresses to each device and organize groups. Various parameters can be configured in the platform, such as dimming curve, fast fade time, and more, helping you create ideal lighting effects.
Moreover, users can also monitor the current status of devices in the platform and generate program code for secondary development uses.

Development Environment

Require materials
⬥ Software: DALI Workshop, HT-IDE3000
⬥ Tool: BM82D8011-1, e-Link, Module debug board ESK-DALI-DT8TC00, Host emulator ESK-DALI-H00.

Diagram
PIN DESCRIPTION
Pin Pin name Function
1 DA1 DALI interface
2 DA2 DALI interface
3 VCC Power supply: 7V~30V
4 GND Ground
5
6 PWMC PWM output pin
Push-pull output, high active
7
8 ANC Fault detection pin
with an internal 10kΩ pull-down resistor
9 Iset Current limit level detection pin
  1. The ANC pin is a fault detection pin that can detect whether the LED is in a fault status by inputting voltage and measuring it with the ADC.
  2. The Iset pin is used to control the PWM output ratio (brightness). Its default min. brightness is 1%.
    It is recommended to use a 3-bit DIP switch and three resistors on the driver for selecting Iset level.
    The DIP resistance values are SW1=56kΩ, SW2=30kΩ and SW3=16kΩ.
PRODUCT SERIES
BM82D8011-1 BM82D8021-1 BM82D8022-1
Supported device type DT6 DT6 & DT8(Tc) DT6 & DT8(Tc)
Compliant standard 101/102/207 101/102/207/209 101/102/207/209
Operating voltage 7V~30V 7V~30V 7V~30V
DALI interface voltage 9.5V~22.5V 9.5V~22.5V 9.5V~22.5V
DALI interface
withstand voltage
260V AC 260V AC 260V AC
Storage temperature -40℃~125℃ -40℃~125℃ -40℃~125℃
Ambient temperature -25℃~85℃ -25℃~85℃ -25℃~85℃
Brightness range 0%~100% 0%~100% 0%~100%
PWM resolution 0.1% 0.1% 0.1%
MCU HT66F31A5 HT66F2362 HT32F50241
ROM size 16KW 16KW 64KB
Secondary development
supported
O X O
ROM size occupied
by default settings
64% 98% 46%
RESOURCES
  1. Development platform: DALI Workshop, including user's guide, software.

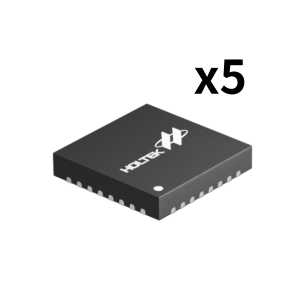

  2. MCU: HT66F31A5, A/D Flash MCU, including datasheet, package information, etc.
  3. Module: BM82D8011-1, DALI DT6 Control Module.
