Integrated Water Atomization Module (16W) Development Kit BM52O5221-1-Kit

US$16.00
In stock
Quantity
0 pieces
Product ID
BM52O5221-1-kit
DESCRIPTION

The BM52O5221-1 is an integrated atomizer module. It integrates a piezoelectric transducer, control circuit board, and structural components.

The principle of an ultrasonic atomizer is to use the high-frequency mechanical oscillation of a piezoelectric transducer to convert the water particles into tiny droplets.

The product circuit is the external-driving type. Therefore, it has the advantages of high effect when atomizing, tiny size, and less heat generation. It’s suitable for applications of humidifiers, aroma diffusers, and other related products.

The BM52O5221-1 also provides a water-shortage detection function to prevent the transducer from being damaged when working in the absence of water (water level drops below 30mm).


Product information

Dimension
- Module: 55 x 55 x 38 mm
- VR control board: 39 x 39 x 30 mm
- PWM control board: 83 x 60 x 23 mm
Net weight
- Module: 65.1g
- VR control board: 13g
- PWM control board: 21.7g
Product includes
1. Water atomization module BM52O5221-1 x 1
2. VR control board x 1
3. PWM control board x 1
4. Ring rubber gasket x 1


Follow Us for More Updates!
PRODUCT FEATURES
  1. Atomization Frequency: 1.7MHz
  2. Operating voltage: 24V±1V
  3. Atomizing Current: 0.67 ±0.07A@24V (16W)
  4. Atomization amount: > 220ml/h (for reference, affected by structures)
  5. Atomization efficiency: > 13.5ml/(w·h)
  6. The amount of mist is adjustable
  7. Recommended water level: 30 to 50mm
  8. Water-shortage detection function
  9. Capacitance water detection
  10. EN 55014 EMC testing passed
  11. Temperature resistance
    - Adhesive: 250°C
    - Casing: 100°C
    - MCU: 85°C

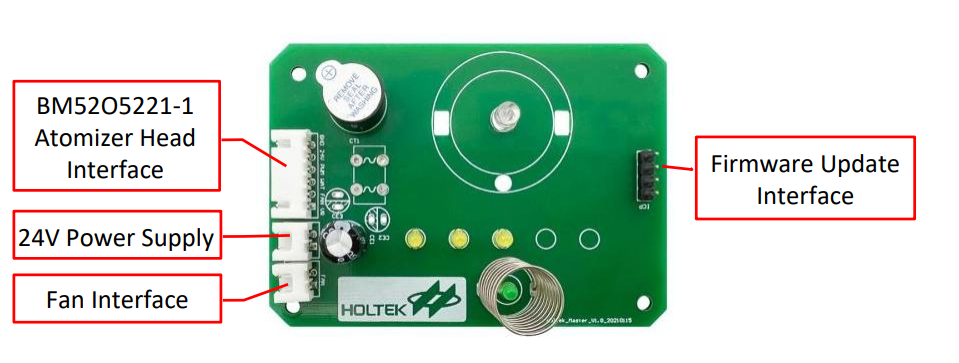

PIN DESCRIPTION
OPERATION MODE AND WIRING

The BM52O5221-1 provides three types of operation mode: VR mode, PWM mode, and learning mode.

VR mode: Use the VR control board to interrupt the 24V power and turn off the atomizer.

Getting started

  1. Connect the module to 24V power, a fan, and the VR control board.
  2. The module detects the water level after powering on. The red LED turns on in the meantime.
  3. If the water level is detected to be higher than the threshold, the red LED turns off. Users can start the atomization after the green LED turns on.

PWM mode: Use the PWM control board to adjust the mist amount.

Getting started

  1. Connect the module to 24V power, a fan, and a PWM control board.
  2. The module detects the water level after powering on. The red LED turns on in the meantime.
  3. If the water level is detected to be higher than the threshold, the red LED turns off, and the green LED turns on.
    You can start to atomize with it.
  4. Press the spring on the PWM board to adjust the mist amount (three-level).

Learning mode: it can learn and memorize the status of no water.

Please note that the module needs to be completely dry in this mode. The product has been calibrated under this mode in the factory. Users do not need to calibrate it again. This mode is mainly for development uses.

PRODUCT FAQs

Question 1
What will happen if I use the module without a ring rubber gasket?

Answer
If the module is not compact with the structure, the water might be leaking.
Please refer to the ring rubber gasket pictures as below.

Question 2
How do the current and previous versions differ?

Answer
The difference is in the module's height.
Previous versions had a height of 15.8mm, and the current version has a height of 18.8mm.
If you use the previous version for development, you need to reserve at least 5mm for the cable length when designing the structures.

PRODUCT SERIES COMPARING
Function BM52O5221-1 BM52D5121-1 BM52D5021-1
Operating voltage 24V 18V~26.5V 5V
Operating current 0.67 ±0.07A @24V 0.42A @24V 400mA @5V
Atomization power (Max.) 16W 10W 2W
Atomization frequency 1.7MHz 1.7MHz / 2.4MHz 108kHz
Adjustable atomizing level O
VR mode: 8W~16W
PWM mode: 3 levels
O
UART mode: 32 levels
Stand-alone mode: 5W~10W
O
UART mode: 3 levels
Water shortage detection O O (can configure disabled) X
Piezoelectric transducer
installation
Under water Under water Above water
Interface PWM UART (9600bps) UART (9600bps)
RESOURCES
  1. Application: External-Driving Atomiser Module, including user's guide, schematic, PCB layout, example program, etc.
More Information
HS Code (reference) 8479.90.90.00-8
