2W Microporous Water Atomization Module BM52D5021-1

US$4.60
In stock
Quantity
45 pieces
Product ID
BM52D5021-1

The product is a water atomization module that provides a maximum power of 2W. Compared to our other water atomization modules, the product has a smaller size, and it is suitable for water atomization products that only require basic functions.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$4.60
10-99 10% US$4.14
100+ 15% US$3.91
For more quantity discounts please contact us
Follow Us for More Updates!
PRODUCT FEATURES
  1. Operating voltage: 5V
  2. Operating current: 400mA @5V (Max.)
  3. Atomization frequency: 108kHz
  4. Operation mode: stand-alone, UART
  5. Configurable atomizing levels and atomizing period in UART mode
    - Provides 3 atomizing levels (1~3 levels)
    - Atomizing period range: 0~100 minutes
  6. Interface: UART (baud rate: 9600bps)
  7. Dimension: 36.07 x 32 x 15.5 mm
  8. Net weight: 7.4g (excluding the piezoelectric transducer)
  9. Product includes: BM52D5021-1 x1 / 2W piezoelectric transducer x1
DESCRIPTION
Differences between BM52D5021-1 and BMN31K502

The BM52D5021-1 has the same functions and specifications as the BMN31K502. The only difference between them is that the BMN31K502 includes a 5-pin cable for direct connection to the BMduino-UNO BM53A367A.

Generating mist

The product generates oscillations at a frequency of 108KHz using a piezoelectric ceramic ring on the piezoelectric transducer to create ripples on the water surface. Then water molecules get into the micro-holes on the metallic film of the piezoelectric transducer. Due to the small diameter of these micro-holes, tiny water droplets are expelled from the opposite side of the metallic film, forming a mist.

Atomizing levels and atomizing period

The product provides two operation modes, stand-alone and UART.

  1. Stand-alone mode: you can easily control the atomizing power on/off by pressing the on-board button.
  2. UART mode: connect the product to a development board via BMCOM to control the power on/off and can configure atomizing levels and atomization period by the development board.
Please connect the piezoelectric transducer before powering on to prevent the product from any damage.
HARDWARE OVERVIEW
Supply power to the module through either Type-C interface or 5V power supply interface.
PIN DESCRIPTION
Pin Pin name Function
1 GND Ground
2 5V Power supply: 5V
3 GND Ground
4 VDD Positive power (3.3V~5V)
5 TX UART: TX
6 RX UART: RX
7 NC -
8 Y- Piezoelectric transducer negative
9 Y+ Piezoelectric transducer positive
PRODUCT SERIES COMPARING
Function BM52O5221-1 BM52D5121-1 BM52D5021-1
Operating voltage 24V 18V~26.5V 5V
Operating current 0.67 ±0.07A @24V 0.42A @24V 400mA @5V
Atomization power (Max.) 16W 10W 2W
Atomization frequency 1.7MHz 1.7MHz / 2.4MHz 108kHz
Adjustable atomizing level O
VR mode: 8W~16W
PWM mode: 3 levels
O
UART mode: 32 levels
Stand-alone mode: 5W~10W
O
UART mode: 3 levels
Water shortage detection O O (can configure disabled) X
Piezoelectric transducer
installation
Under water Under water Above water
Interface PWM UART (9600bps) UART (9600bps)
RESOURCES

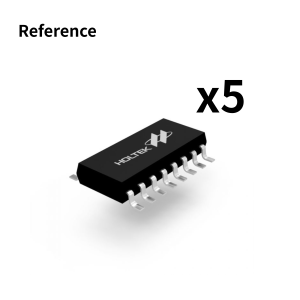

  1. MCU : Holtek HT66F2030, Small Package A/D Flash MCU with EEPROM, including datasheet, package information, etc.
More Information
HS Code (reference) 8479.90.90.00-8
