8x8 RGB LED Matrix Module BM32D2021-1

US$4.80
In stock
Quantity
18 pieces
Product ID
BM32D2021-1

The product is a colored LED module with 64 RGB LEDs arranged in a matrix 8x8 (8 rows by 8 columns). It has built in the LED driver IC, HT16D33B, to drive each LED individually. Its operation differs from the LED strip modules in which LEDs are connected in a serial type.

Follow Us for More Updates!
PRODUCT FEATURES
  1. Operating voltage: 2.7V~5.5V
  2. Static operating current: 12μA @ 5V
  3. LED driver IC: HT16D33B
    - Operating voltage: 4.5V~5.5V
    - Max. driver current: 550mA @5V, constant current: 48mA, white light, max. brightness
  4. Color and brightness are configurable
    - Color: 16.77 million
    - Brightness: 256 levels
  5. Configurable constant current: 16 levels (3mA~48mA)
  6. Cascadable up to 4 modules
  7. Configurable colors for all, a row, a column, or individual LED
  8. I2C interface (address: 0x2E + 0x64~67, select one)
  9. Product includes: 8x8 RGB LED Matrix Module BM32D2021-1 x1 | cable x1 | power cable x2
  10. Dimension: 79 x 73.7 x 8 mm
  11. Net weight: 27g
DESCRIPTION

To create captivating lighting effects, besides designing diverse lighting modes in programming, the functionality of the LED driver IC also plays a crucial role. The HT16D33B is a powerful driver IC that provides a 16-level constant current drive and 256-level brightness control (using PWM signal).

The brightness of the LED is determined by the driving current and the brightness control levels (duty cycle of the PWM signal). The red, green, and blue primary colors of RGB LEDs are all configurable from 0 to 255, which can create a full-color display (256 x 256 x 256) in 16.77 million colors.

The external development board can communicate with the HT16D33B via I2C interface and issue commands to control color and brightness of each LED for creating a kaleidoscopic lighting effect. LEDs on the product are uniquely numbered from LED1 to LED64. You can set or clear the colors of all, a column, a row, or individual LEDs through commands. It's also possible to configure the brightness of the LEDs.

Moreover, by cascading up to four modules, it can achieve a full-color display containing a total of 256 RGB LEDs.

Points to be noted when cascading the product.
⬥ It is important to ensure that the supply current is sufficient for each module.
⬥ It is necessary to set different I2C addresses for each module.

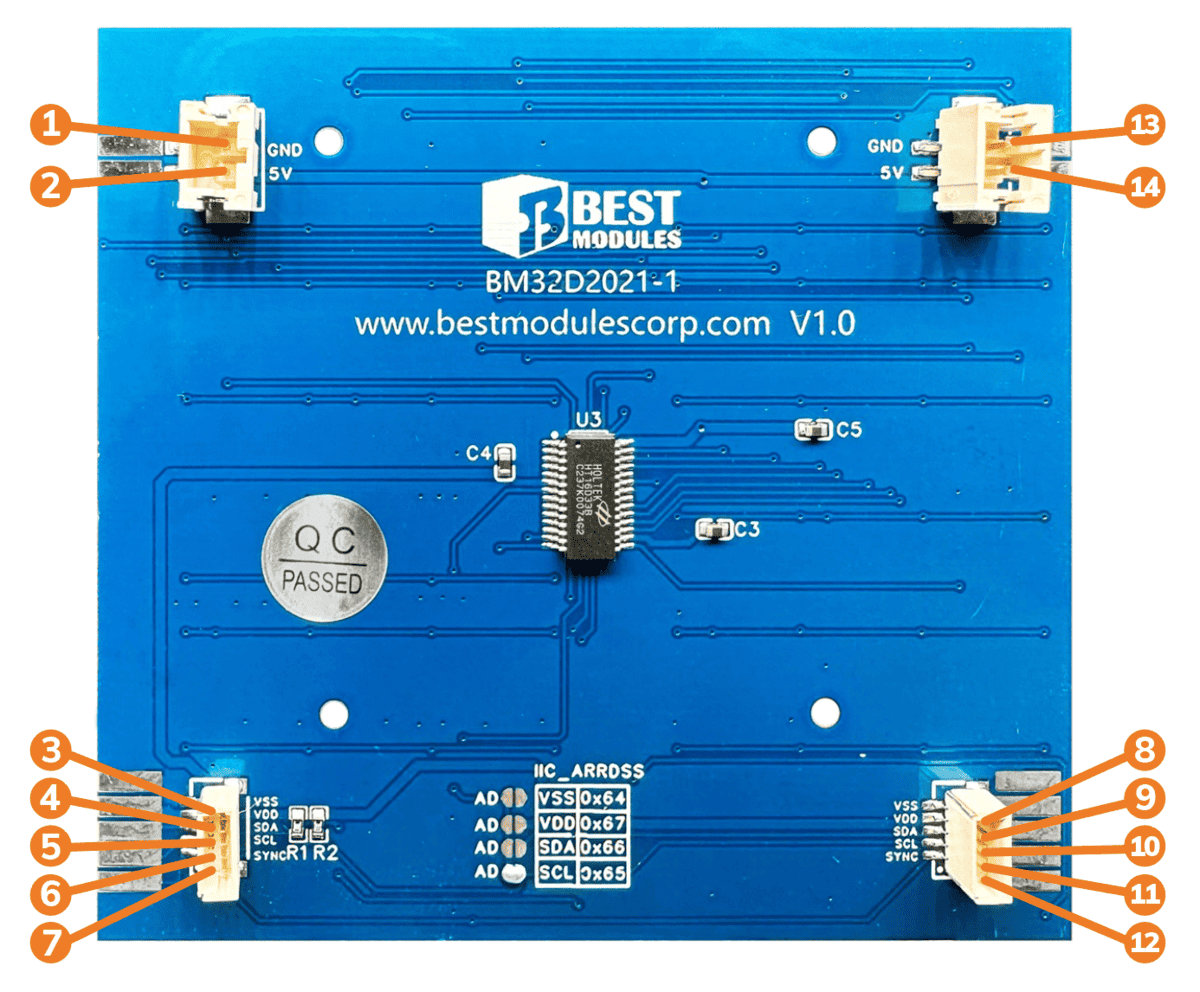

PIN DESCRIPTION
Pin Name Function
1 GND Ground (LED)
2 LED_VDD LED power supply: 4.5V~5.5V
3 SYNC
4 SCL I2C clock line
5 SDA I2C data line
6 VDD Module power supply: 2.7V~5.5V
7 VSS Ground
8 SYNC
4 SCL I2C clock line
5 SDA I2C data line
6 VDD Module power supply: 2.7V~5.5V
7 VSS Ground
13 GND Ground (LED)
14 LED_VDD LED power supply: 4.5V~5.5V
COMPARISON

Compared to the BMD26M088, which we have launched on our website, the product is designed with the same LED driver IC, HT16D33B, and also features an 8x8 matrix arrangement of LEDs.
However, the LEDs on the BMD26M088 are smaller than those on this product. Users can choose the product that best suits their application.

Part number BM32D2021-1 BMD26M088
LED amount 64 (8 x 8) 64 (8 x 8)
Operating voltage 2.7V~5.5V 2.7V~5.5V
LED driver IC HT16D33B HT16D33B
LED operating voltage 4.5V~5.5V 4.5V~5.5V
Max. driving current 550mA @5V 268mA @5V
Color 16.77 million 16.77 million
Brightness 256 levels 256 levels
Constant current 16 levels (3mA~48mA) 16 levels (3mA~48mA)
Cascade function O
can cascade up to 4 modules
O
can cascade up to 4 modules
Interface I2C I2C
Product dimension 79 x 73 x 8 mm 54 x 36 x 8 mm
RESOURCES
  1. IC: HT16D33B, 16×16 Constant Current LED Driver, including datasheet, package information, etc.
