The BLDC_EVB is the development board dedicated designed for BLDC. It has a built-in Holtek 32-bit BLDC MCU, the HT32F65232, and can be used with the development platform, BLDC Motor Workshop.
You can set multiple parameters on the workshop and then generate the program codes. BLDC Motor Workshop provides a real-time graphical display without an oscilloscope.
The product needs to be used with a power board. There are three voltage ranges for the power boards that you can use with the product:
1. Low voltage (DC 9V to 26V): ESK32-A5A20 2. Medium voltage (DC 17V to 60V): ESK32-A5A21 3. High voltage (AC 90V to 264V): ESK32-A5A22
Product information
Dimension: 100 x 70 x 21 mm
Net Weight: 36.8g
NOTE
Please contact Holtek to get the BLDC Motor Workshop development platform software.
The motor product itself has a large working current. Careless use will cause damage to the product.
It is recommended that this product be used by professionals.
PRODUCT FEATURES
Power supply: 5V or 3.3V
*You can select e-Link32 Lite USB or external power to supply power
Has a built-in 32-bit Arm® Cortex®-M0+ BLDC MCU, the HT32F65232
Operating frequency up to 60MHz
32KB Flash, 4KB SRAM
Includes e-Link32 Lite on the board
Provides the development platform, BLDC Motor Workshop

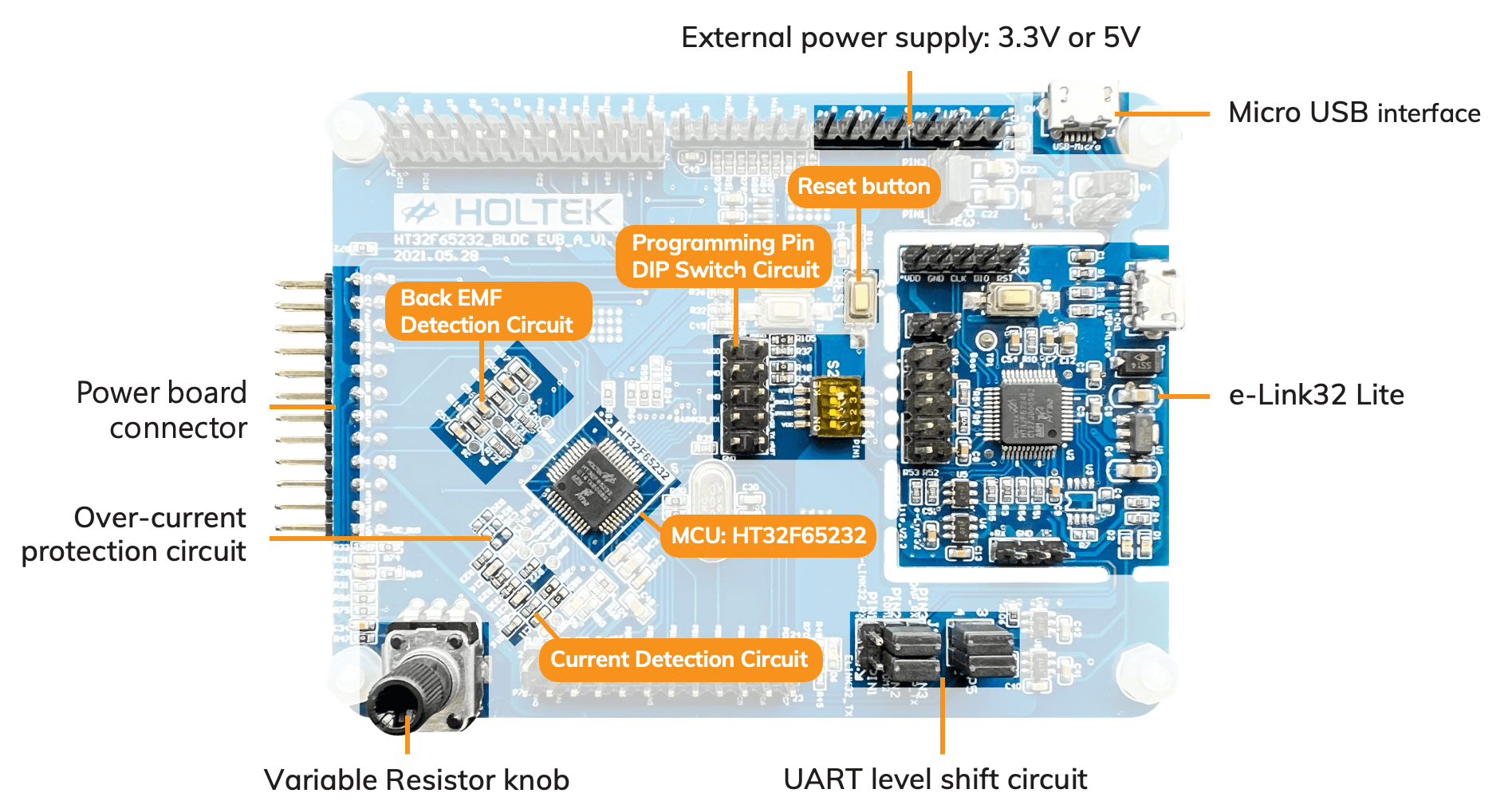

HARDWARE OVERVIEW
RESOURCES
MCU: HT32F65232, 32-Bit Arm® Cortex®-M0+ BLDC MCU, including datasheet, package information, etc.
