Home BH66F2662 32QFN
  • Home
  • BH66F2662 32QFN
main product photo

BH66F2662 32QFN

US$0.84
In stock
Quantity
100 pieces
Product ID
BH66F2662-32QFN
DESCRIPTION

The BH66F2662 is a Body Fat Measurement Flash MCU, which is designed for four-electrode AC Body Fat Scale applications. The device includes a fully integrated body fat measurement circuit, a 24-bit Delta Sigma A/D converter, enhanced MCU resources, LED driver and UART / SPI communication interfaces, making the device suit for four-electrode LED Bluetooth AC body fat scale related products.

The BH66F2662 measures body fat via a AC body fat circuit . The circuit includes a weight measurement circuit and a fat measurement circuit. The device can also greatly reduce the external component requirements. This results in major reductions in manufacturing and component costs as well as improved productivity.

NOTE
  1. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$0.84
10-99 15% US$0.71
100-499 25% US$0.63
500+ 35% US$0.55
For more quantity discounts please contact us
Add to Wish List
Email
Follow Us for More Updates!
FEATURES
  1. Operating voltage : 2.2V~5.5V
  2. Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
  3. Fully integrated internal oscillators require no external components
  4. Oscillator types :
    - Internal High Speed 8MHz RC – HIRC
    - Internal Low Speed 32kHz RC – LIRC
  5. Up to two Timer Modules for time measurement, input capture, compare match output or PWM output or single pulse output function
  6. Internal LDO with bypass function for PGA, ADC and external sensor power supply
  7. Programmable I/O source current for LED applications
  8. 2 differential or 4 single-end channel 24-bit resolution Delta Sigma A/D converter
  9. Low Voltage Reset / Detect function – LVR
  10. Body Fat Measurement Circuit
  11. 115 powerful instructions

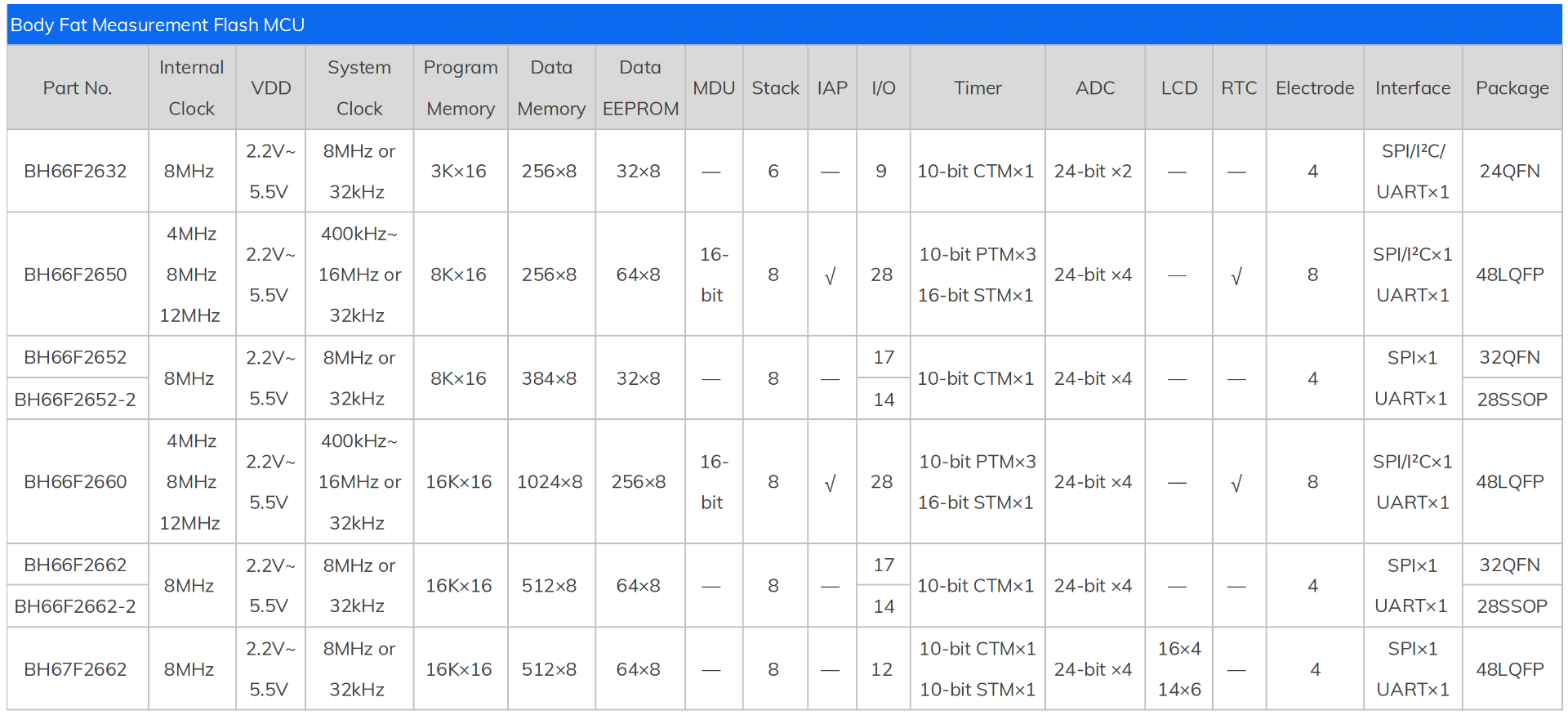

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Debug Adapter : e-Link
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU : Holtek BH66F2662, Body Fat Measurement Flash MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.0000
Datasheet V1.40 (2.81 MB)
