433MHz Parallel OOK Transmitter Module BCM-68F2123-X02

US$1.20
In stock
Quantity
331 pieces
Product ID
BCM-68F2123-X02
Description

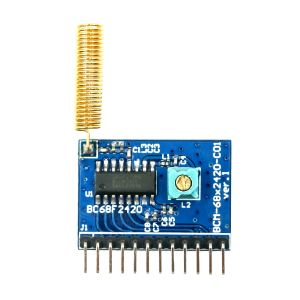

This product is a parallel RF wireless transmitter module, the frequency is 433.92MHz. The module has 12 pins, of which there are four pins can be connected to external buttons. When a button is pressed, making the signal at low state, the module will be triggered and transmit the button status signal. The four buttons can be operated at the same time, so we call it a parallel transmitter module.

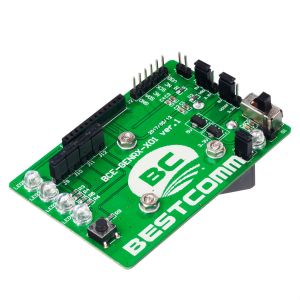

To facilitate the use of the transmitter modules, we make the RF wireless transmitter module evaluation board (BCE-GENTX-X01). The evaluation board has buttons, LED, battery slot, etc., it can save your time to make peripheral circuits. By simply inserting the transmitter module into the evaluation board, you can quickly start using the transmitter module.

The MCU of this module is BC68F2123 from Holtek Semiconductor Inc., it has 1K x14 program memory. We have another transmitter module (Product ID: BCM-68F2130-X02) which uses BC68F2130 MCU. BC68F2130 has bigger program memory size (2Kx16), if you plan to develop MCU program to implement more features, BCM-68F2130-X02 will be more suitable.


Product Information:

  1. Dimension(L x W x H): 20 x 25 x 10 (mm), not including antenna and pin stick
  2. Weight: 2.8g, not including antenna and pin stick
  3. Packing List:
    1.Parallel OOK Transmitter module 433MHz BCM-68F2123-X02 x 1
    2.Spring antenna 433.92MHz x1
    3.12-pin, 90-degree pin stick x 1

NOTE

  1. The module needs to use with a corresponding RF wireless receiver module to form a complete transmit / receive function.
Follow Us for More Updates!

Features:

  1. Operating Voltage: 2.2~3.6V
  2. Modulation: AM (OOK)
  3. Frequency: 433.92 MHz
  4. Output Power: 10dBm (10mW)
  5. Operating Temperature: -40 ~ +85℃

IC Information

  1. BC68F2123
More Information
HS Code (reference) 8517.79.00.00-6
