Home BC68F2123 16NSOP-EP (5 pieces)
  • Home
  • BC68F2123 16NSOP-EP (5 pieces)
main product photo

BC68F2123 16NSOP-EP (5 pieces)

US$1.96
In stock
Quantity
28 sets (1 set = 5 pieces)
Product ID
BC68F2123-16NSOP-EP
DESCRIPTION

The BC68F2123 is an OOK/FSK transmitter MCU with low power consumption and high efficiency. It can support the 315MHz, 433MHz, 868MHz, and 915MHz (Sub-1GHz) ISM bands and meets ETSI standard requirements. It is suitable for wireless control applications, such as wireless ceiling fans, wireless doorbells, RF switches, etc.

NOTE
  1. Each purchasing unit includes 5 pieces of IC.
  2. The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image
Select Quantity Discount Unit price
1-9 - US$1.96
10-99 15% US$1.67
100-499 25% US$1.47
500+ 35% US$1.27
For more quantity discounts please contact us
Add to Wish List
Email
Follow Us for More Updates!
FEATURES
  1. Operating Voltage: 2.2V ~ 3.6V
  2. Oscillator types:
    - Internal High Speed 8MHz RC – HIRC
    - Internal Low Speed 32kHz RC – LIRC
  3. 9 bidirectional I/O lines
  4. Frequency bands: 315MHz, 433MHz, 868MHz, 915MHz
  5. OOK/FSK modulation
  6. Output Power up to 13dBm
  7. TX current consumption @ 433MHz：
    - 17mA typical (FSK, 10dBm)
    - 11mA typical (OOK, 10dBm, 50% duty cycle)
  8. OOK symbol rate from 0.5Ksps to 25Ksps
  9. Programmable FSK data rate up to 50Kbps
  10. FCC / ETSI Compliant

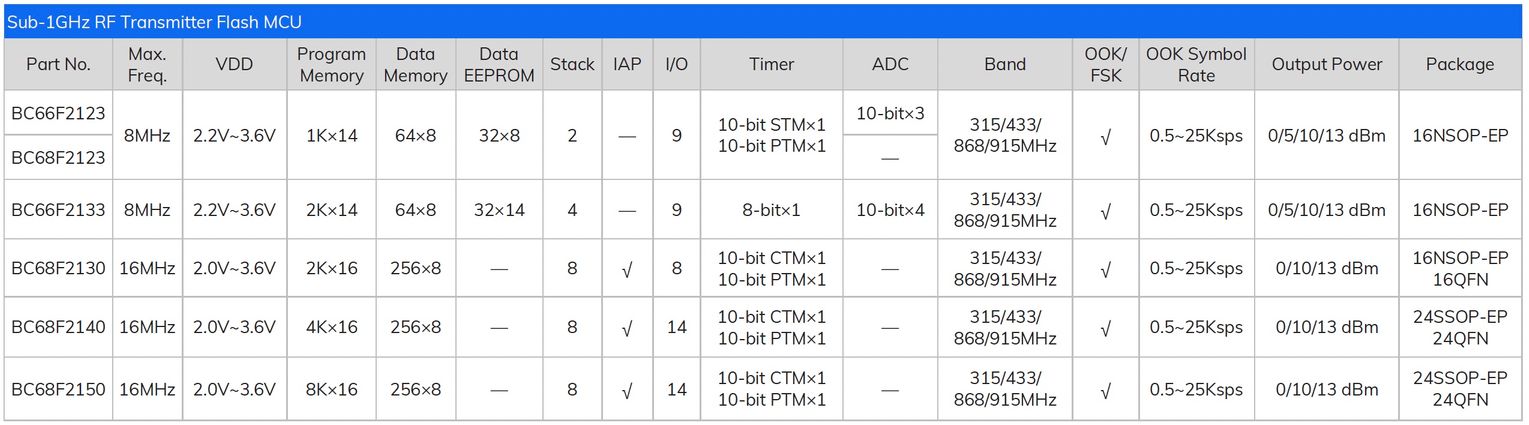

PRODUCT SERIES
DEVELOPMENT TOOL
  1. Debug Adapter : e-Link
  2. Development Environment : HT-IDE3000
RESOURCES
  1. MCU : Holtek BC68F2123, Sub-1GHz RF Transmitter Flash MCU, including datasheet, package dimension, etc.
More Information
HS Code (reference) 8542.31.0000
Datasheet V1.50 (2.07 MB)
