Sub-1GHz Transceiver IC BC3602 24QFN

US$0.81

In stock

Quantity

0 pieces

Product ID

BC3602-24QFN

DESCRIPTION

The BC3602 is a Sub-1GHz low current FSK/GFSK RF transceiver for wireless applications in the 315MHz, 433MHz, 470MHz, 868MHz, and 915MHz frequency bands. It incorporates a highly integrated sub-1GHz transceiver and a baseband modem with programmable data rates from 2Kbps to 250Kbps.

It is suitable for battery or IoT applications that require low power consumption, such as smart homes, intelligent security products, remote meter reading, industrial/agricultural controllers, and many other wireless bidirectional communication products.

NOTE

The product image is for showing the product appearance, the pin count shown may not match the product pin count.

Quantity Discounts refresh image

refresh image

Select	Quantity	Discount	Unit price
	1-9	-	US$0.81
	10-99	15%	US$0.69
	100-499	25%	US$0.61
	500+	35%	US$0.53

For more quantity discounts please contact us

Follow Us for More Updates!

FEATURES

Operating voltage: 1.9V~3.6V
Frequency band: 315/433/470/868/915MHz
FSK/GFSK modulation
Supports 3-wire or 4-wire SPI interface
Programmable data rate: 2Kbps~250Kbps
Programmable TX output power: up to 13dBm
Low current consumption
High RX sensitivity
Supports low cost 16MHz crystal with integrated load capacitor
Frame synchronization recognition for both FIFO mode and Direct mode

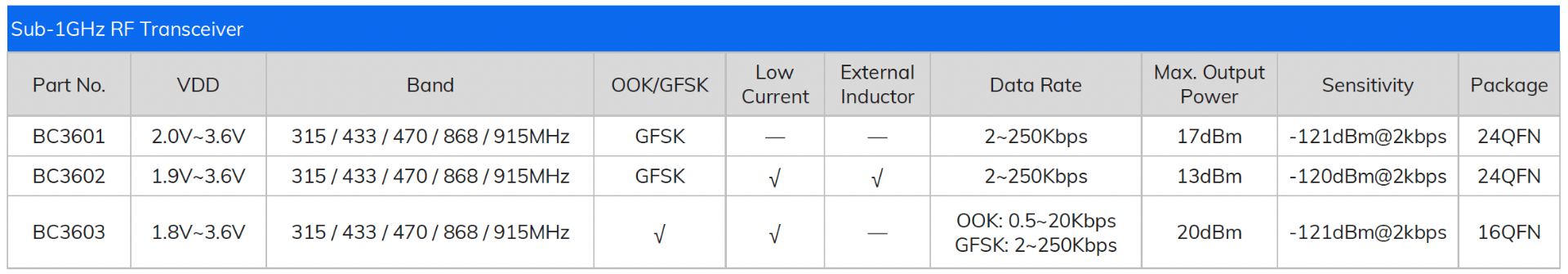

PRODUCT SERIES

RESOURCES

IC : Holtek BC3602, Sub-1GHz Low RX Current FSK/GFSK RF Transceiver, including datasheet, package dimension, etc.

More Information
HS Code (reference)	8542.39.00.22-8
