with
BMduino
, you can use
Arduino
,
Keil
, and
BMCOM
The BMduino-UNO is an Arduino Uno equivalent board designed with a few extra featuresto improve upon the original Uno.
BMduino is a plug-and-play solution for the Arduino system. Without any soldering, all you need is a 5-pin cable to plug together various devices and accessories!
But that's not all - BMduino is not limited to just the Arduino platform. It's versatile enough to be used on the Keil platform as well, opening up a whole new world of possibilities for your projects!
BMduino comes equipped with two BMCOMs that let you directly connect to any device featuring a BMCOM interface. FURTHERMORE, it provides an on-board debugger, and is easy-programming for beginners.
The BMCOM is an ecosystem consisting of I2C/UART modules, which includes sensors, actuators, displays, and wireless modules, that can accelerate the process of prototype design.
There are two types of BMCOM connectors:
BMCOM1
: a 2.54mm pitch, 5-pin header
BMCOM2
: a 1mm pitch, 5-pin JST connector
BMduino ecosystem products support not only Arduino but also Keil.
The Keil Driver is a driver program designed for BMduino products on the Keil platform. We also offer example programs, helping you quickly develop products on the Keil platform.
▶ For detailed usage instructions, please refer to: Keil Driver Quick Start Guide
Keil Driver | Function | Supported product |
---|---|---|
Input Module | ||
BMK52T016 | 16-Key Touch Shield | BMK52T016 |
BMK54T004 | Slide + 4-Key Touch Shield | BMK54T004 |
BMK56T004 | Wheel + 4-Key Touch Shield | BMK56T004 |
BM32S2031-1 | Proximity Sensing Module | BMS31M001 BM32S2031-1 |
BM32S3021-1 | 1D Gesture Recognition Module | BMS31M002 BM32S3021-1 |
Sensor Module | ||
BM25S2021-1 | Temperature and Humidity Digital Sensor | BME33M251 BM25S2021-1 |
BMS33M332 | Proximity and Ambient Light Sensing Module | BMS33M332 |
BMS56M605 | Gyroscope and Accelerometer Module | BMS56M605 |
BMH63K203 | Infrared Thermometer Module | BMH63K203 BMH06203-41 BMH06203-42 BMH06203-31 BMH06203-32 |
BM22S4221-1 | PIR Sensor | BMA46M422 BM22S4221-1 |
BML36M001 | Time of Flight Ranging (ToF) Module | BML36M001 |
BMV23M001 | Sound Detector Module | BMV23M001 |
BME82M131 | Ambient Light Sensing Module | BME82M131 |
BME34M101 | Capacitive Soil Moisture Detection Module | BME34M101 |
BMH12M205 | Weighing Kit (5Kg) | BMH12M205 |
BMH08002-4 | Oximeter and Heart Rate Module | BMH83M002 BMH08002-4 |
BM62S2201-1 | Digital Air Pressure Sensor | BME21M621 BM62S2201-1 |
Output Module | ||
BMP73T104 | 4-channel Motor Driver Shield | BMP73T104 |

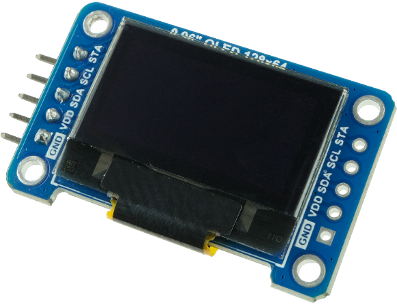

BMD31M090 | 0.96" OLED Module | BMD31M090 |
BMD26M088 | RGB LED (8 x 8) Module | BMD26M088 |
BMB22M210 | UART Expansion Module | BMB22M210 |
BMV31T001 | Voice Playback Shield | BMV31T001 |
BMS81M001 | Shake Detection Module | BMS81M001 |
BMD11M134 | 4-digit Alphanumeric Display Module | BMD11M134 |
BMP75M131 | Relay Module | BMP75M131 |
Wireless Module | ||
BM7701-00-1 | Bluetooth 5.2 BLE Module | BMC77M001 |
BMC81M001 | WIFI Module | BMC81M001 |
